Instruction:

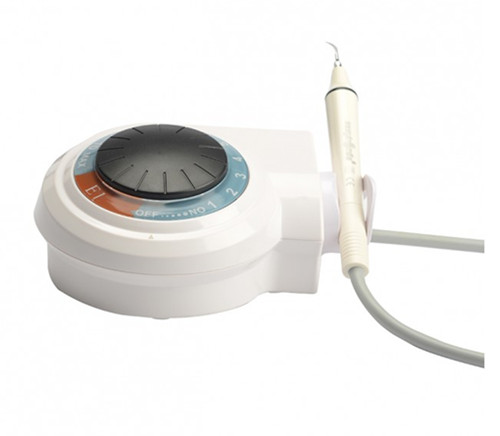

Ultrasonic scaler VG-E1 is mainly used for teeth
cleaning and also an indispensable equipment for tooth disease prevention andtreatment. The product E1 ultrasonic piezo scaler mainly used prevention and for tooth disease prevention and treatment.

It contains the following features:
1. Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily. The optional function: automatic water supply system.
2. The handpiece is detachable and can be autoclaved under the high temperature
of 135℃ and pressure of 0.22MPa.
3. Digitally controlled, easy operation and more efficient for scaling.

Technical specification:

1.Power source Input： 100V to 240V~ 50Hz/60Hz 1.2A (Max)
2.Main unit input: 30VDC 1.3A
3.Output primary tip Vibration excursion：≤100ìm
4.Output half-excursion force：＜2N
5.Output tip Vibration frequency：28kHz 3kHz
6.Output power： 3W to 20W
7.main unit fuse: 250V T 1.6AL
8.Power source fuse: 250V T 2.0AL
9.Water pressure： 0.1bar to 5bar (0.01MPa to 0.5MPa)
10.Weight of main unit： 0.65kg
11.Weight of power source： 0.3kg
12.Operating mode: Continuous operation
13. Type of protection against electric shock: Class II
14. Degree of protection against electric shock：Type B equipment
15. Degree of protection against harmful ingress of water：Ordinary equipment
(IPX0),Protection degree against water(used on the pedal)：IPX1
16. Degree of safety of application in the presence of a Flammable Anaesthetic
Mixture with air or with Oxygen or Nitrous Oxide：Equipment
not suitable for being used in the presence of a flammable anaesthetic mixture
with air or with oxygen or nitrous oxide
17. Working condition:
①Environment temperature:5 C to 40 C
②Relative humidity:≤80%

E1 Packing list :
1. Main unit
2. Detachable handpiece
3. Adapter of power supply
4. Foot Switch
5. Scaling tip G1 G2 G3 G4 P1 fit EMS Woodpecker-UDS
6. Torque wrench
7. Packing list
8. Instruction manual
9. Warranty card
