Instruction:

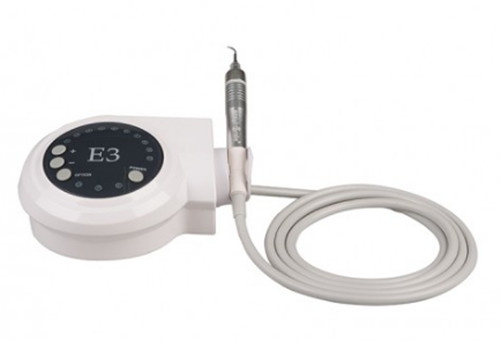

Ultrasonic scaler E3-LED is mainly used for teeth
cleaning and also an indispensable equipment for tooth disease prevention and treatment. The product E3-LED ultrasonic piezo scaler mainly used prevention and for tooth disease prevention and treatment.

It contains the following features:
1. Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily. The optional function: automatic water supply system.
2. The handpiece is detachable and can be autoclaved under the high temperature
of 135℃ and pressure of 0.22MPa.
3. Digitally controlled, easy operation and more efficient for scaling.

Technical specifications of ultrasonic scaler

a）Power source Input: 100V to 240V~ 50Hz/60Hz 1.2A (max)
b）main unit input: 30VDC 1.3A
c）Output primary tip Vibration excursion:≤100μm
d）Output half-excursion force:＜2N
e）Output tip Vibration frequency:28kHz 3kHz
f）Output power: 3W to 20W
g）main unit fuse: 250VT 1.6AL
h）power source fuse: 250VT 2.0AL
i）Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
j）Weight of main unit:0.65kg
k）Weight of power source:0.3kg
l）main unit volume:175mm×145mm×81mm
m）Operating mode: Continuous operation
n） Type of protection against electric shock: Class II
o） Degree of protection against electric shock: Type BF applied part
p） Degree of protection against harmful ingress of water: Ordinary equipment
(IPX0) Protection degree against water(used on the pedal): IPX1
q) Degree of safety of application in the presence of a Flammable
Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide : Equipment
not suitable for being used in the presence of a flammable anaesthetic
mixture with air or with oxygen or nitrous oxide
