Foshan Vigor Dental Co.,Ltd.

 FEATURES:

1)     Large and foldable color LCD screen, visualizing the treatment clearly;

2)     Original Switzerland electro-motor;

3)     Special connector for medical treatment;

4)     Drive-1:1 contra angle is available;

5)     9 kinds of reamers for selection: Each allows 5 programs to be memorized automatically;

6)     4 types of rotation modes: auto start, auto stop, auto reverse, Auto apical slow down;

7)     Independent multi-frequency operating system, ensuring the accurate measurement in any condition;

8)     Self calibration of the rotation speed or torque;

9)     High capacity rechargeable battery with longer duration;

10)   Auto power off completely, extending the duration of battery;

11)   Ergonomics design with elegant appearance to bring the convenient operation.

12)   Motor handle has been upgraded. Built-in wire makes operation more convenient.



TECHNICAL SPECIFICATIONS:

1)     Adaptor voltage: Input 100-240V AC 50/60Hz

Output 10V DC 1.5A

2)     Battery: Rechargeable Li-ion battery: DC 7.4V 1200mAh

3)     Power: 5W

4)     Current: ≤ 500Ma

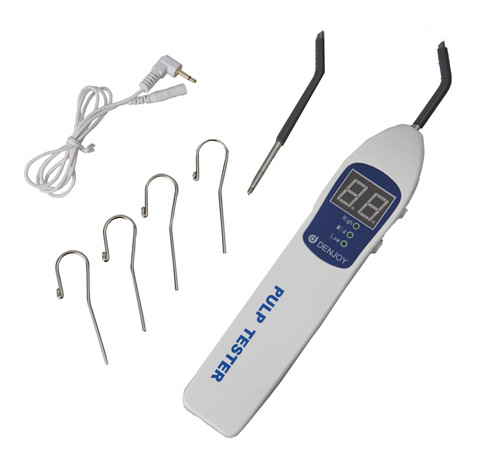

Pulp Tester DY310 is designed for testing the teeth nerve by a pulse current by generating ans displaying a test signal of normalized value!

Features:

1 Preset speed mode (high-mid-low speed).

A gentle, pulsed stimulus begins to increase at a rate

2 Specifically designed for patient comfort.

If the patient indicates perception, simply release the button. The stimulus stops immediately, but the numbers remain frozen on the face for about 3 minutes.

3 Convenient to operate

Maximum stimulus-- -80.

Between 0-40, the patient feels ache and anesthesia, alive teeth nerve

Between 40-80,with above-mentioned reaction,part of teeth nerve dead

80, no above-mentioned reaction, dead teeth nerve

4 The device turns itself off three mimutes later after operation(No wasted batteries.)

5. Battery-operated, Standard 9-Volt batteries, Extremely economical

6 Fully guaranteed for one year



Specifications

a. INPUT： MAXIMUM 80V；

b. OUTPUT： DC 9.0V；

c. CURRENT： 90mA。

d．VOLTAGE RANGE：DC 6.0-10.0V

e．SIZE：186*38*24mm

f．NET WEIGHT：220g



Standard accessory include:

main unit 1 pc

testing cord 1pc

test electrode 1 pc (long)

test electrode 1 pc (short)

stainless hook 4 pcs

user's manual 1pc
